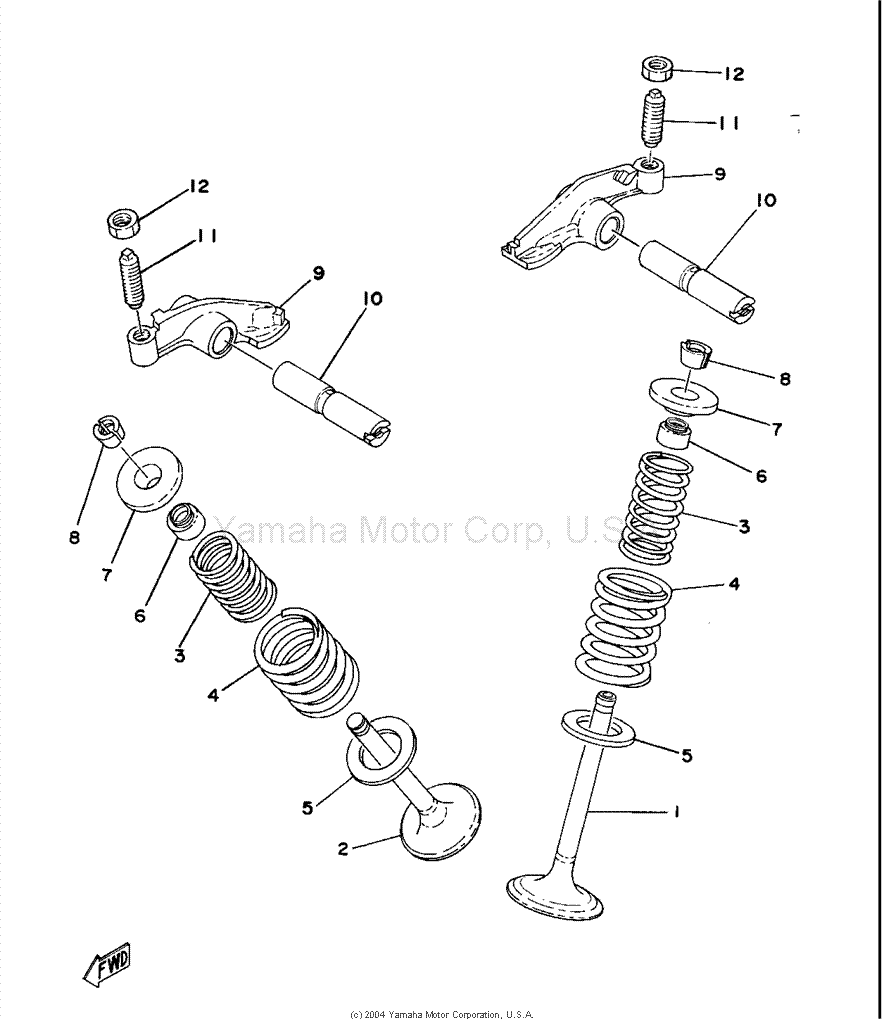

Valve
| Item | Part # | Description | Notes | Req |
|---|---|---|---|---|
| 1 | 2J2-12111-01-00 | VALVE, INTAKE | 1 | |
| 2 | 583-12121-00-00 | VALVE, EXHAUST | 1 | |
| 3 | 90501-31454-00 | SPRING, COMPRESSION | 2 | |
| 4 | 90501-44455-00 | SPRING, COMPRESSION | 2 | |
| 5 | 256-12116-01-00 | SEAT, VALVE SPRING | 2 | |
| 6 | 341-12119-02-00 | SEAL, VALVE STEM | 2 | |
| 7 | 256-12117-01-00 | RETAINER, VALVE SPRING | 2 | |
| 8 | 341-12118-00-00 | COTTER, VALVE | 4 | |
| 9 | 583-12151-00-00 | ARM, VALVE ROCKER | 2 | |
| 10 | 583-12156-01-00 | SHAFT, ROCKER | 2 | |
| 11 | 90149-08098-00 | SCREW, VALVE ADJUSTING (583-12159-00) | INTAKE: 0,07 - 0,12 mm | 1 |
| 11 | 90149-08098-00 | SCREW, VALVE ADJUSTING (583-12159-00) | EXHAUST: 0,12 - 0,17 mm | 1 |
| 12 | 90170-08173-00 | NUT | (M8 x 1,0, SW 12, 27 Nm) | 2 |
