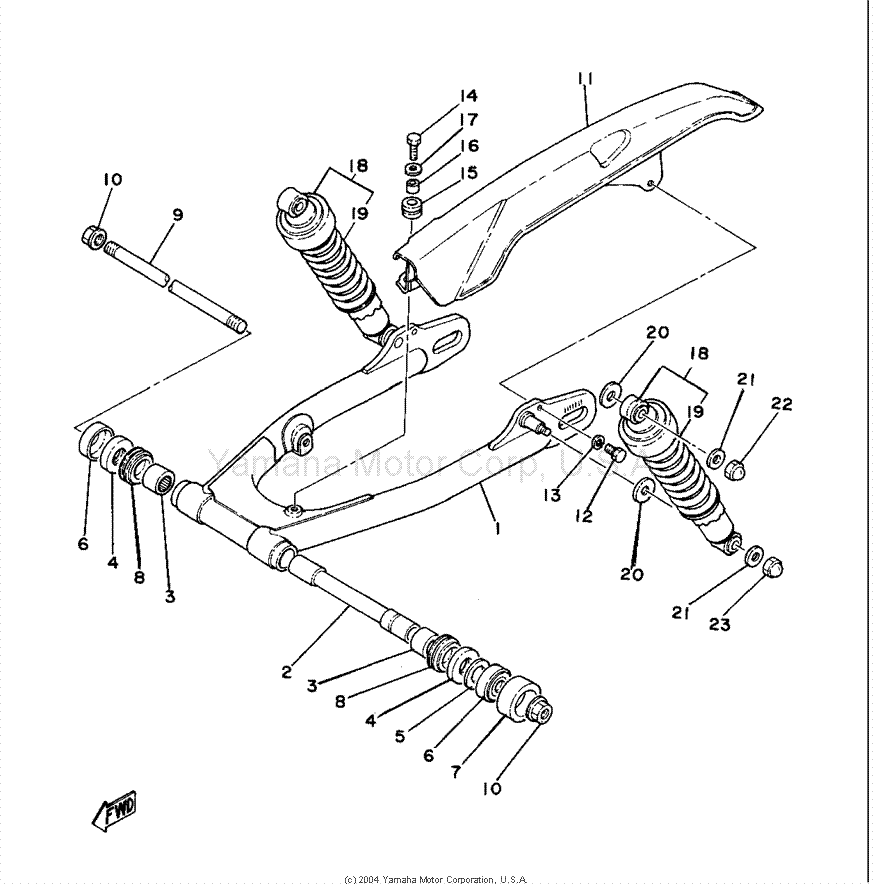

Rear Arm-Suspension
| Item | Part # | Description | Notes | Req |
|---|---|---|---|---|
| 1 | 3H0-22110-01-33 | REAR ARM COMPLETE | YAMAHA BLACK | 1 |
| 2 | 483-22124-00-00 | BUSH 2 | 1 | |
| 3 | 93317-22208-00 | BEARING, CYLINDRICAL | 2 | |
| 4 | 93342-22205-00 | BEARING | 2 | |
| 5 | 648-45533-00-03 | SHIM (0.3T) | U.N. | 1 |
| 6 | 2K8-22129-00-00 | COVER, THRUST 2 | 2 | |
| 7 | 431-22151-03-00 | SEAL, GUARD | 1 | |
| 8 | 93108-35004-00 | OIL SEAL | 2 | |
| 9 | 2J2-22141-03-00 | SHAFT, PIVOT | 1 | |
| 10 | 90179-16256-00 | NUT | (M16 x 1,5, 80 Nm) | 2 |
| 11 | 2J2-22311-01-93 | CASE, CHAIN | CHROME PLATED | 1 |
| 12 | 97301-06016-00 | BOLT | 1 | |
| 13 | 92901-06100-00 | WASHER, SPRING | 1 | |
| 14 | 97301-06020-00 | BOLT | 1 | |
| 15 | 90480-13197-00 | GROMMET | 1 | |
| 16 | 90387-06216-00 | COLLAR | 1 | |
| 17 | 90201-06066-00 | WASHER, PLATE | 1 | |
| 18 | 2J2-22210-04-00 | SHOCK ABSORBER ASS'Y, REAR | 2 | |
| 19 | 2J2-22212-02-00 | SPRING | 2 | |
| 20 | 90201-14215-00 | WASHER, PLATE | 4 | |
| 21 | 90201-10696-00 | WASHER, PLATE | 4 | |
| 22 | 90176-10009-00 | NUT, CROWN | (M10, SW 17, 30 Nm) | 2 |
| 23 | 90176-10013-00 | NUT, CROWN | (M10, SW 17, 30 Nm) | 2 |
