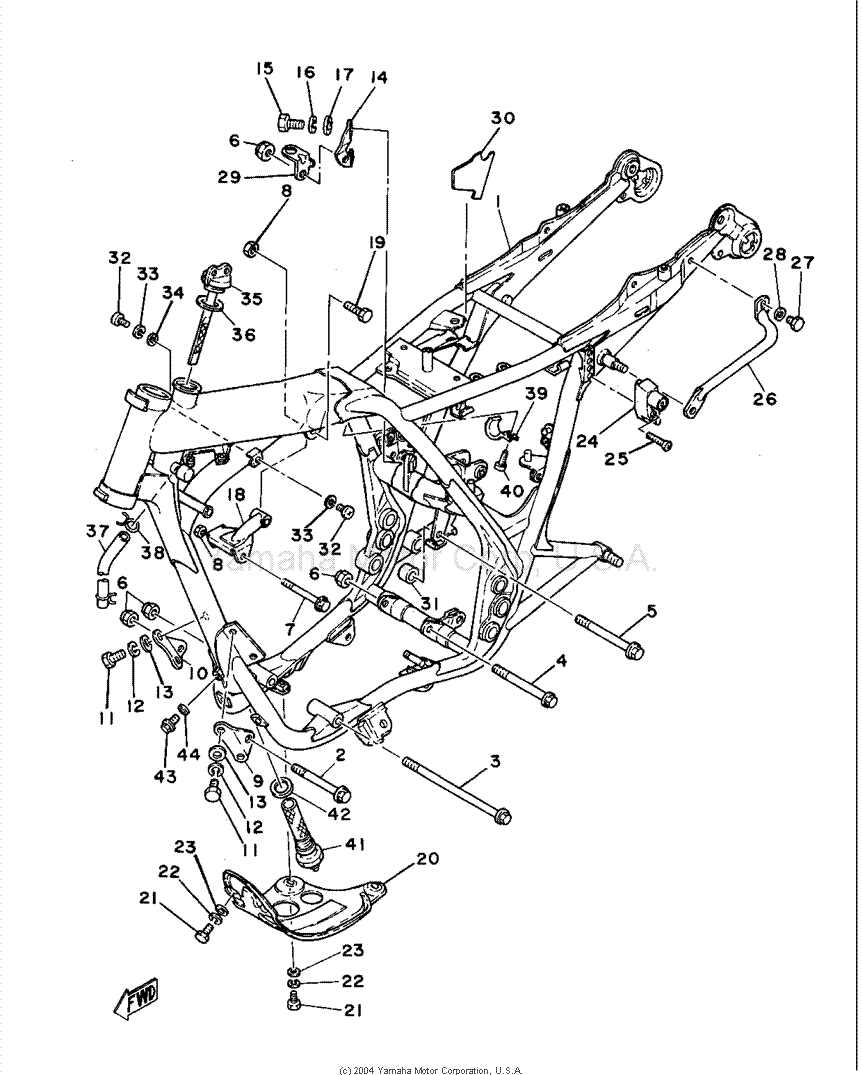

| Item |
Part # |
Description |
Notes |
Req |
| 1 |
2J4-21110-30-33 |
FRAME COMP |
YAMAHA BLACK |
1 |
| 2 |
90105-10039-00 |
BOLT, WASHER BASED |
(M10 x 1,25, 50 Nm) |
1 |
| 3 |
90105-10113-00 |
BOLT, WASHER BASED |
(M10 x 1,25, 50 Nm) |
1 |
| 4 |
90105-10051-00 |
BOLT, WASHER BASED |
(M10 x 1,25, 50 Nm) |
1 |
| 5 |
90105-10119-00 |
BOLT, WASHER BASED |
(M10 x 1,25, 50 Nm) |
1 |
| 6 |
90185-10035-00 |
NUT, SELF-LOCKING |
(M10 x 1,25, 50 Nm) |
4 |
| 7 |
90105-08118-00 |
BOLT, WASHER BASED |
(M8, 25 Nm) |
1 |
| 8 |
90185-08054-00 |
NUT, SELF-LOCKING |
(M8, 25 Nm) |
2 |
| 9 |
2J2-21315-00-33 |
STAY, ENGINE FRONT (L.H.) |
YAMAHA BLACK |
1 |
| 10 |
2J2-21316-00-33 |
STAY, ENGINE FRONT (R.H.) |
YAMAHA BLACK |
1 |
| 11 |
97321-08018-00 |
BOLT |
(M8 x 18, 20 Nm) |
4 |
| 12 |
92903-08100-00 |
WASHER, SPRING (92901-08100) |
|
4 |
| 13 |
92901-08600-00 |
WASHER, PLATE |
|
4 |
| 14 |
2J2-21317-01-00 |
STAY, ENGINE REAR |
|
1 |
| 15 |
97321-08025-00 |
BOLT |
(M8 x 25, 20 Nm) |
2 |
| 16 |
92903-08100-00 |
WASHER, SPRING (92901-08100) |
|
2 |
| 17 |
92901-08600-00 |
WASHER, PLATE |
|
2 |
| 18 |
2J2-21318-01-00 |
STAY, ENGINE 5 |
|
1 |
| 19 |
97321-08040-00 |
BOLT |
(M8 x 40, 25 Nm) |
1 |
| 20 |
3X4-21471-00-90 |
PROTECTOR, ENGINE |
UNI CHROME (BLACK) |
1 |
| 21 |
97301-06016-00 |
BOLT |
|
3 |
| 22 |
92903-06100-00 |
WASHER, SPRING (92901-06100) |
|
3 |
| 23 |
90201-06709-00 |
WASHER, PLATE |
|
3 |
| 24 |
4R8-21308-00-00 |
HELMET HANGER ASS'Y |
|
1 |
| 25 |
90149-06150-00 |
SCREW |
|
1 |
| 26 |
2J2-21165-00-00 |
HANDLE, STANDING |
|
1 |
| 27 |
97321-06012-00 |
BOLT |
|
1 |
| 28 |
92901-06600-00 |
WASHER, PLATE |
|
1 |
| 29 |
2J2-2144G-00-00 |
STAY, STOP SWITCH |
|
1 |
| 30 |
2J2-2117F-00-00 |
COVER |
|
1 |
| 31 |
2J2-21459-01-00 |
COLLAR, REAR ENGINE STAY |
|
1 |
| 32 |
98503-05012-00 |
SCREW, PAN HEAD (98501-05012) |
|
2 |
| 33 |
92903-05100-00 |
WASHER, SPRING (92901-05100) |
|
2 |
| 34 |
92901-05200-00 |
WASHER, PLAIN |
|
1 |
| 35 |
2J2-21771-02-00 |
BODY, CAP |
|
1 |
| 36 |
90430-27124-00 |
GASKET |
|
1 |
| 37 |
90445-11289-00 |
HOSE |
|
1 |
| 38 |
90467-10008-00 |
CLIP |
|
2 |
| 39 |
2J2-21335-00-00 |
CLAMP, WIRE HARNESS 1 |
|
1 |
| 40 |
97701-50110-00 |
SCREW, PAN HEAD TAPPING |
|
1 |
| 41 |
583-21756-00-00 |
NET, FILTER |
(SW 27, 90 Nm) |
1 |
| 42 |
90430-22123-00 |
GASKET |
|
1 |
| 43 |
95801-08012-00 |
BOLT, FLANGE |
(M8 x 12, 18 Nm) |
1 |
| 44 |
90430-08119-00 |
GASKET |
|
1 |
