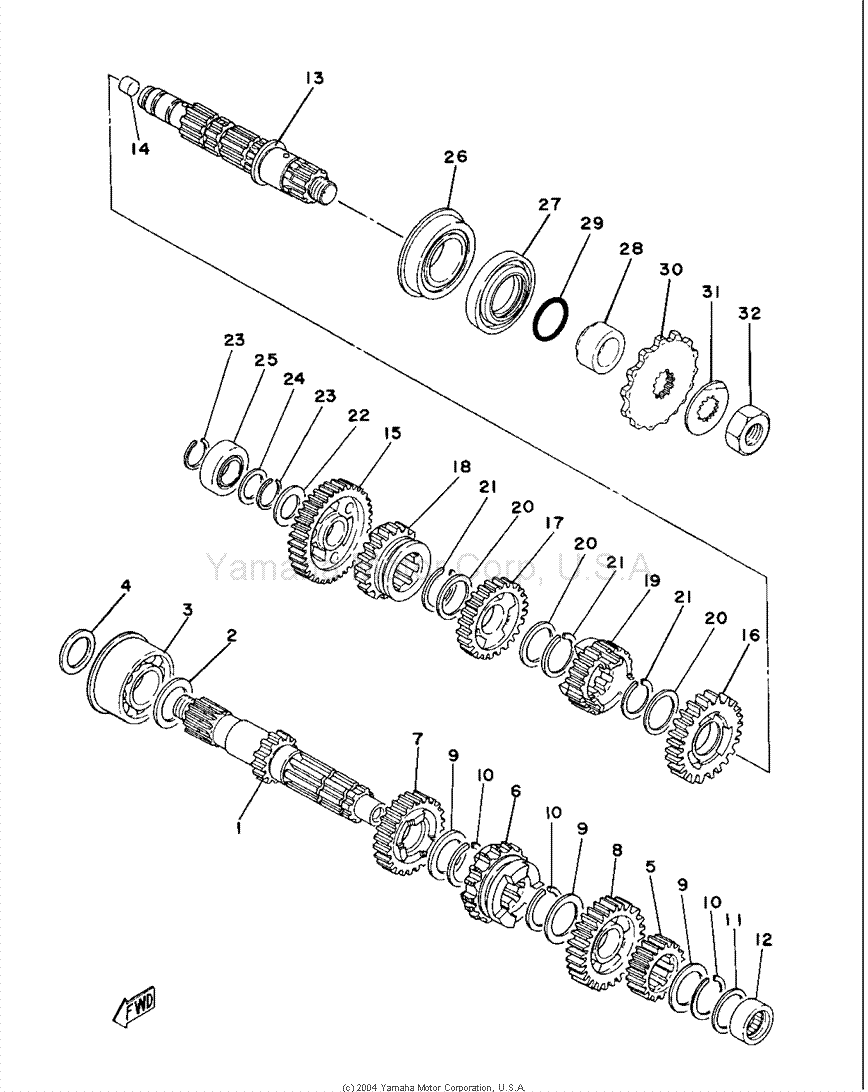

Transmission
| Item | Part # | Description | Notes | Req |
|---|---|---|---|---|
| 1 | 583-17411-01-00 | AXLE, MAIN (14T) | 1 | |
| 2 | 168-17428-01-05 | SHIM 2 (0.5T) | 1 | |
| 3 | 93306-20546-00 | BEARING | 1 | |
| 4 | 90201-252A4-00 | WASHER, PLATE | 1 | |
| 5 | 583-17121-00-00 | GEAR, 2ND PINION (18T) | 1 | |
| 6 | 583-17131-02-00 | GEAR, 3RD PINION (21T) | 1 | |
| 7 | 583-17141-00-00 | GEAR, 4TH PINION (24T) | 1 | |
| 8 | 583-17151-01-00 | GEAR, 5TH PINION (27T) | 1 | |
| 9 | 90201-25287-00 | WASHER, PLATE | 3 | |
| 10 | 93440-25020-00 | CIRCLIP | 3 | |
| 11 | 90201-20266-00 | WASHER, PLATE | 1 | |
| 12 | 93311-42012-00 | BEARING, CYLINDRICAL | 1 | |
| 13 | 2H0-17421-00-00 | AXLE, DRIVE | 1 | |
| 14 | 90338-09066-00 | PLUG | 1 | |
| 15 | 583-17211-00-00 | GEAR, 1ST WHEEL (33T) | 1 | |
| 16 | 583-17221-00-00 | GEAR, 2ND WHEEL (28T) | 1 | |
| 17 | 583-17231-01-00 | GEAR, 3RD WHEEL (25T) | 1 | |
| 18 | 583-17241-00-00 | GEAR, 4TH WHEEL (22T) | 1 | |
| 19 | 583-17251-01-00 | GEAR, 5TH WHEEL (21T) | 1 | |
| 20 | 90201-25287-00 | WASHER, PLATE | 3 | |
| 21 | 93440-25020-00 | CIRCLIP | 3 | |
| 22 | 90201-20278-00 | WASHER, PLATE | 1 | |
| 23 | 93410-20038-00 | CIRCLIP | 2 | |
| 24 | 90201-20266-00 | WASHER, PLATE | 1 | |
| 25 | 93313-32008-00 | BEARING, CYLINDRICAL | 1 | |
| 26 | 93306-30517-00 | BEARING (B6305) | 1 | |
| 27 | 93102-35180-00 | OIL SEAL | 1 | |
| 28 | 90387-25646-00 | COLLAR | 1 | |
| 29 | 93210-22298-00 | O-RING | 1 | |
| 30 | 168-17461-60-00 | SPROCKET, DRIVE (16T) | 1 | |
| 31 | 90215-21022-00 | WASHER, LOCK | 1 | |
| 32 | 90179-18020-00 | NUT | (M18, SW 32, 70 Nm) | 1 |
