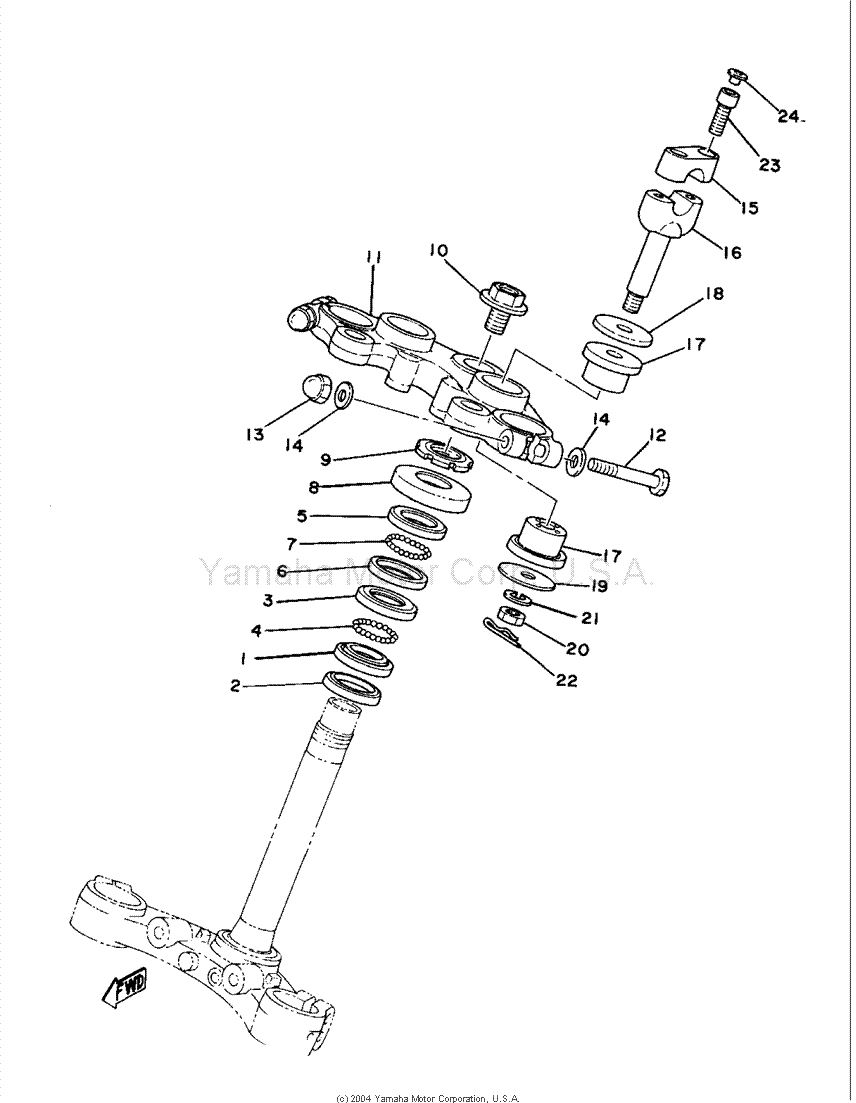

Steering
| Item | Part # | Description | Notes | Req |
|---|---|---|---|---|
| 1 | 156-23411-00-00 | RACE, BALL 1 | 1 | |
| 2 | 164-23462-00-00 | SEAL, STEERING | 1 | |
| 3 | 156-23412-00-00 | RACE, BALL 2 | 1 | |
| 4 | 93501-04011-00 | BALL | 19 | |
| 5 | 122-23411-00-00 | RACE, BALL 1 | 1 | |
| 6 | 122-23412-00-00 | RACE, BALL 2 | 1 | |
| 7 | 93503-16010-00 | BALL | 22 | |
| 8 | 583-23416-01-00 | COVER, BALL RACE 2 | 1 | |
| 9 | 90179-25033-00 | NUT | 1 | |
| 10 | 90105-14102-00 | BOLT, WASHER BASED | (SW 22, 49 Nm) | 1 |
| 11 | 2J2-23435-00-98 | CROWN, HANDLE | LOW GLOSS BLK | 1 |
| 12 | 97313-08055-00 | BOLT | (M8 x 55, SW 10, 15 Nm) | 2 |
| 13 | 95303-08800-00 | NUT, CROWN | (M8, SW 12, 15 Nm) | 2 |
| 14 | 92901-08600-00 | WASHER, PLATE | 4 | |
| 15 | 360-23441-01-98 | HOLDER, HANDLE UPPER | LOW GLOSS BLK | 2 |
| 16 | 1E6-23442-00-00 | HOLDER, HANDLE LOWER | 2 | |
| 17 | 1T4-23434-00-00 | HOLDER, DAMPER | 4 | |
| 18 | 90209-12151-00 | WASHER | 2 | |
| 19 | 90201-10149-00 | WASHER, PLATE | 2 | |
| 20 | 95301-10700-00 | NUT | 2 | |
| 21 | 92901-10100-00 | WASHER, SPRING | 2 | |
| 22 | 90468-12006-00 | CLIP | 2 | |
| 23 | 91316-08025-00 | BOLT | (M8 x 25, SW 6, 18 Nm) | 4 |
| 24 | 341-23469-00-00 | CAP, BOLT | 4 |
