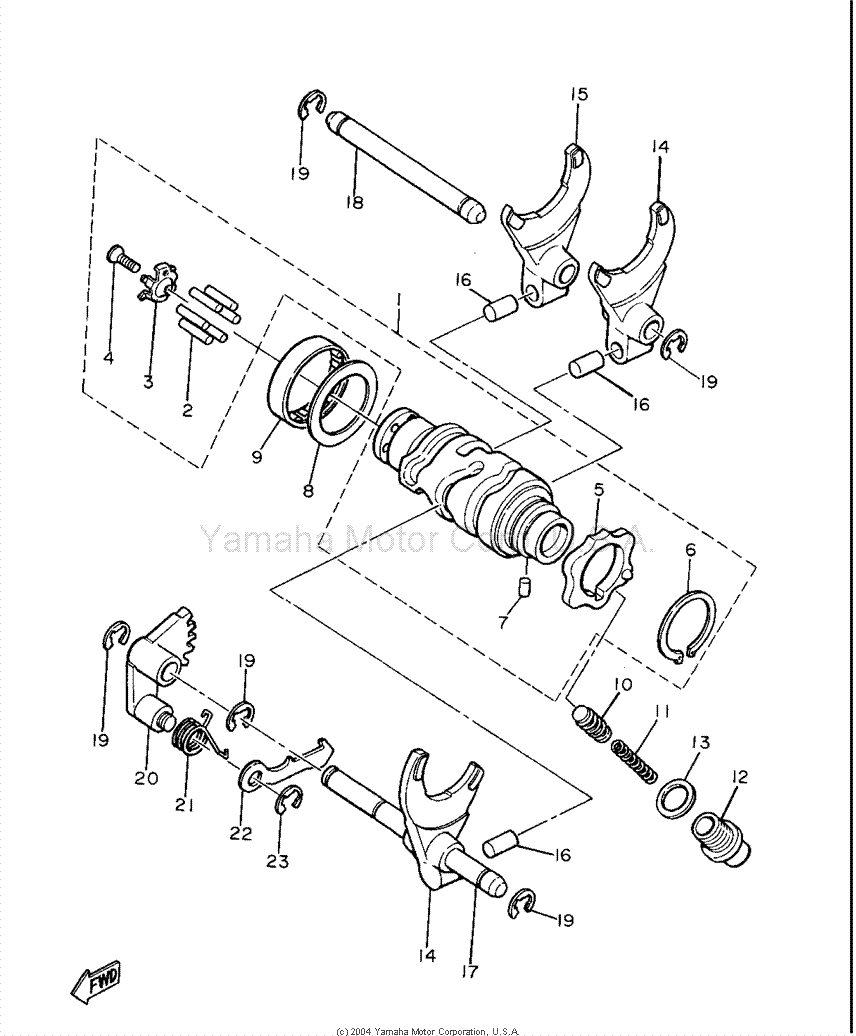

Shift Cam-Fork
| Item | Part # | Description | Notes | Req |
|---|---|---|---|---|
| 1 | 2J2-18540-00-00 | SHIFT CAM ASS'Y | 1 | |
| 2 | 93604-18100-00 | PIN, DOWEL | 6 | |
| 3 | 434-18561-00-00 | PLATE, SIDE 1 | 1 | |
| 4 | 98701-05012-00 | SCREW, FLAT HEAD | 1 | |
| 5 | 2J2-18141-00-00 | PLATE, STOPPER | 1 | |
| 6 | 93410-30012-00 | CIRCLIP | 1 | |
| 7 | 93604-08071-00 | PIN, DOWEL | 1 | |
| 8 | 90201-32673-00 | WASHER, PLATE | 1 | |
| 9 | 93315-23208-00 | BEARING, CYLINDRICAL | 1 | |
| 10 | 1J7-18547-00-00 | STOPPER, CAM | 1 | |
| 11 | 90501-10062-00 | SPRING, COMPRESSION | 1 | |
| 12 | 90149-14031-00 | SCREW | (18 Nm) | 1 |
| 13 | 137-15353-00-00 | GASKET, DRAIN | 1 | |
| 14 | 364-18511-00-00 | FORK, SHIFT 1 | 2 | |
| 15 | 363-18511-00-00 | FORK, SHIFT 1 | 1 | |
| 16 | 90250-08017-00 | PIN, STRAIGHT | 3 | |
| 17 | 363-18531-00-00 | BAR, SHIFT FORK GUIDE 1 | 1 | |
| 18 | 363-18535-00-00 | BAR, SHIFT FORK GUIDE 2 | 1 | |
| 19 | 93430-08006-00 | CIRCLIP | 5 | |
| 20 | 434-18122-00-00 | LEVER, SHIFT 2 | 1 | |
| 21 | 90508-08334-00 | SPRING, TORSION | 1 | |
| 22 | 498-18151-03-00 | LEVER, SHIFT 3 | 1 | |
| 23 | 93430-07012-00 | CIRCLIP | 1 |
