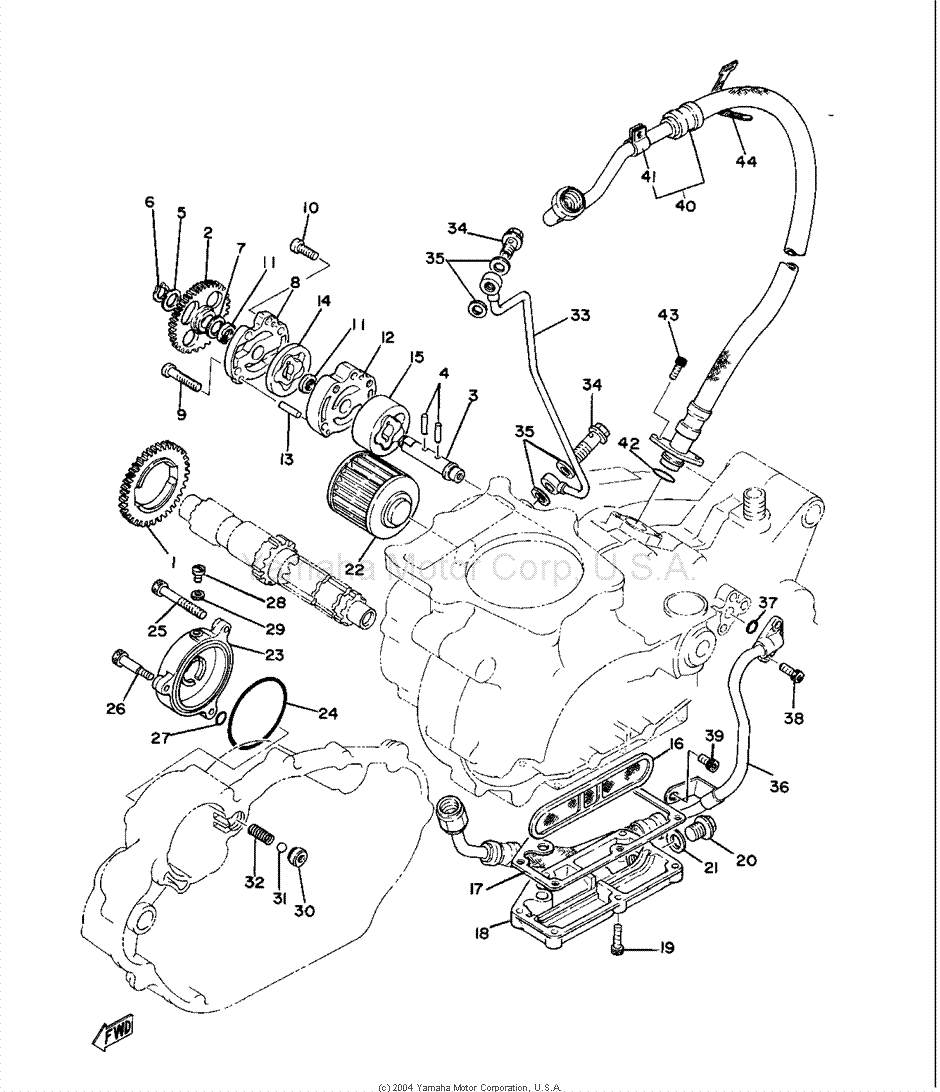

| Item |
Part # |
Description |
Notes |
Req |
| 1 |
583-13324-00-00 |
GEAR, DRIVE (42T) |
|
1 |
| 2 |
583-13325-00-00 |
GEAR, PUMP DRIVEN (41T) |
|
1 |
| 3 |
583-13314-00-00 |
SHAFT, PUMP |
|
1 |
| 4 |
93603-17070-00 |
PIN, DOWEL |
|
2 |
| 5 |
90201-10119-00 |
WASHER, PLATE |
|
1 |
| 6 |
93410-10025-00 |
CIRCLIP |
|
1 |
| 7 |
90201-12166-00 |
WASHER, PLATE |
|
1 |
| 8 |
583-13316-02-00 |
COVER, PUMP |
|
1 |
| 9 |
92501-06030-00 |
SCREW, PAN HEAD |
(M6 x 30, PH 3, 7 Nm) |
3 |
| 10 |
92503-06018-00 |
SCREW, PAN HEAD (92501-06018) |
(M6 x 18, PH 3, 7 Nm) |
2 |
| 11 |
93104-11038-00 |
OIL SEAL |
|
2 |
| 12 |
583-13336-02-00 |
HOUSING, ROTOR |
|
1 |
| 13 |
93604-22050-00 |
PIN, DOWEL |
|
2 |
| 14 |
583-13310-01-00 |
ROTOR ASS'Y 1 |
|
1 |
| 15 |
583-13320-00-00 |
ROTOR ASS'Y 2 |
|
1 |
| 16 |
583-13411-00-00 |
STRAINER, OIL |
|
1 |
| 17 |
583-13414-00-00 |
GASKET, STRAINER COVER |
|
1 |
| 18 |
583-13417-01-00 |
COVER, STRAINER |
|
1 |
| 19 |
91316-06020-00 |
BOLT |
(M6 x 20, SW 5, 10 Nm) |
6 |
| 20 |
90340-14009-00 |
PLUG, STRAIGHT SCREW |
(M14 x 1,5, SW 19, 30 Nm) |
1 |
| 21 |
214-11198-01-00 |
GASKET |
|
1 |
| 22 |
2H0-13440-90-00 |
ELEMENT ASS'Y, OIL CLEANER |
|
1 |
| 23 |
2J2-13447-00-00 |
COVER, OIL ELEMENT |
|
1 |
| 24 |
93210-64297-00 |
O-RING |
|
1 |
| 25 |
91311-06060-00 |
BOLT |
(M6 x 60, SW 5, 10 Nm) |
2 |
| 26 |
90109-06586-00 |
BOLT |
(M6 , SW 5, 7 Nm) |
1 |
| 27 |
93210-07155-00 |
O-RING (93210-07135) |
|
1 |
| 28 |
90149-05158-00 |
SCREW |
(M5, 5 Nm) |
1 |
| 29 |
90430-05126-00 |
GASKET |
|
1 |
| 30 |
583-13113-00-00 |
SEAT, CHECK BALL |
|
1 |
| 31 |
93503-08007-00 |
BALL |
|
1 |
| 32 |
90501-05378-00 |
SPRING, COMPRESSION |
|
1 |
| 33 |
583-13161-01-00 |
PIPE, DELIVERY 1 |
|
1 |
| 34 |
90401-08038-00 |
BOLT, UNION |
(M8, 18 Nm) |
2 |
| 35 |
90430-08119-00 |
GASKET |
|
4 |
| 36 |
583-13464-00-00 |
HOSE, OIL 1 |
(SW 17) |
1 |
| 37 |
93210-10197-00 |
O-RING |
|
1 |
| 38 |
91316-06015-00 |
BOLT |
(M6 x 15, SW 5, 10 Nm) |
2 |
| 39 |
91316-06012-00 |
BOLT |
(M6 x 12, SW 5, 10 Nm) |
1 |
| 40 |
2J2-13465-00-00 |
HOSE, OIL 2 |
|
1 |
| 41 |
90461-10042-00 |
CLAMP |
|
1 |
| 42 |
93210-15171-00 |
O-RING |
|
1 |
| 43 |
91316-06015-00 |
BOLT |
(M6 x 15, SW 5, 10 Nm) |
2 |
| 44 |
437-83936-00-00 |
BAND, SWITCH CORD |
|
1 |
