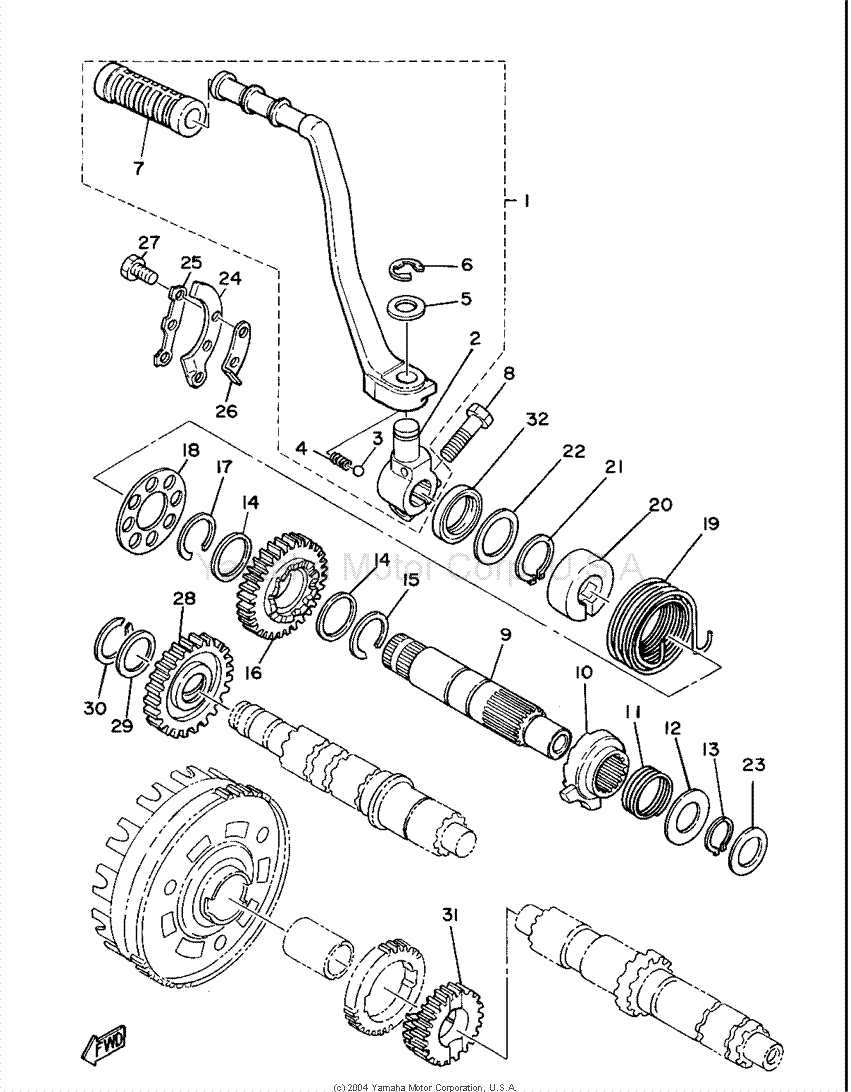

Kick Starter
| Item | Part # | Description | Notes | Req |
|---|---|---|---|---|
| 1 | 2J2-15620-00-00 | KICK CRANK ASS'Y | 1 | |
| 2 | 583-15621-00-00 | BOSS, KICK CRANK | 1 | |
| 3 | 93507-32009-00 | BALL | 1 | |
| 4 | 90501-12081-00 | SPRING, COMPRESSION | 1 | |
| 5 | 90201-15234-00 | WASHER, PLATE | 1 | |
| 6 | 93430-10016-00 | CIRCLIP | 1 | |
| 7 | 1T1-15618-00-00 | COVER, KICK LEVER | 1 | |
| 8 | 97321-08030-00 | BOLT | 1 | |
| 9 | 583-15661-00-00 | AXLE, KICK | 1 | |
| 10 | 583-15671-00-00 | WHEEL, RATCHET | 1 | |
| 11 | 90501-23143-00 | SPRING, COMPRESSION | 1 | |
| 12 | 363-15676-00-00 | COVER, SPRING | 1 | |
| 13 | 93410-19015-00 | CIRCLIP | 1 | |
| 14 | 90201-25287-00 | WASHER, PLATE | 2 | |
| 15 | 93440-25020-00 | CIRCLIP | 1 | |
| 16 | 583-15641-00-00 | GEAR, KICK (29T) | 1 | |
| 17 | 93440-25008-00 | CIRCLIP (93440-25019) | 1 | |
| 18 | 583-15676-00-00 | COVER, SPRING | 1 | |
| 19 | 90508-32280-00 | SPRING, TORSION | 1 | |
| 20 | 90560-25154-00 | SPACER | 1 | |
| 21 | 93410-25010-00 | CIRCLIP | 1 | |
| 22 | 90201-25290-00 | WASHER, PLATE | 1 | |
| 23 | 90201-20278-00 | WASHER, PLATE | 1 | |
| 24 | 583-15674-00-00 | GUIDE, RATCHET WHEEL | 1 | |
| 25 | 363-15686-00-00 | WASHER, LOCK | 1 | |
| 26 | 434-15668-00-00 | STOPPER | 1 | |
| 27 | 97321-06016-00 | BOLT | 3 | |
| 28 | 583-15651-00-00 | GEAR, SPROCKET IDLE (27T) | 1 | |
| 29 | 90201-17255-00 | WASHER, PLATE | 1 | |
| 30 | 93410-17008-00 | CIRCLIP | 1 | |
| 31 | 583-15631-00-00 | GEAR, KICK PINION (19T) | 1 | |
| 32 | 93102-25064-00 | OIL SEAL | 1 |
