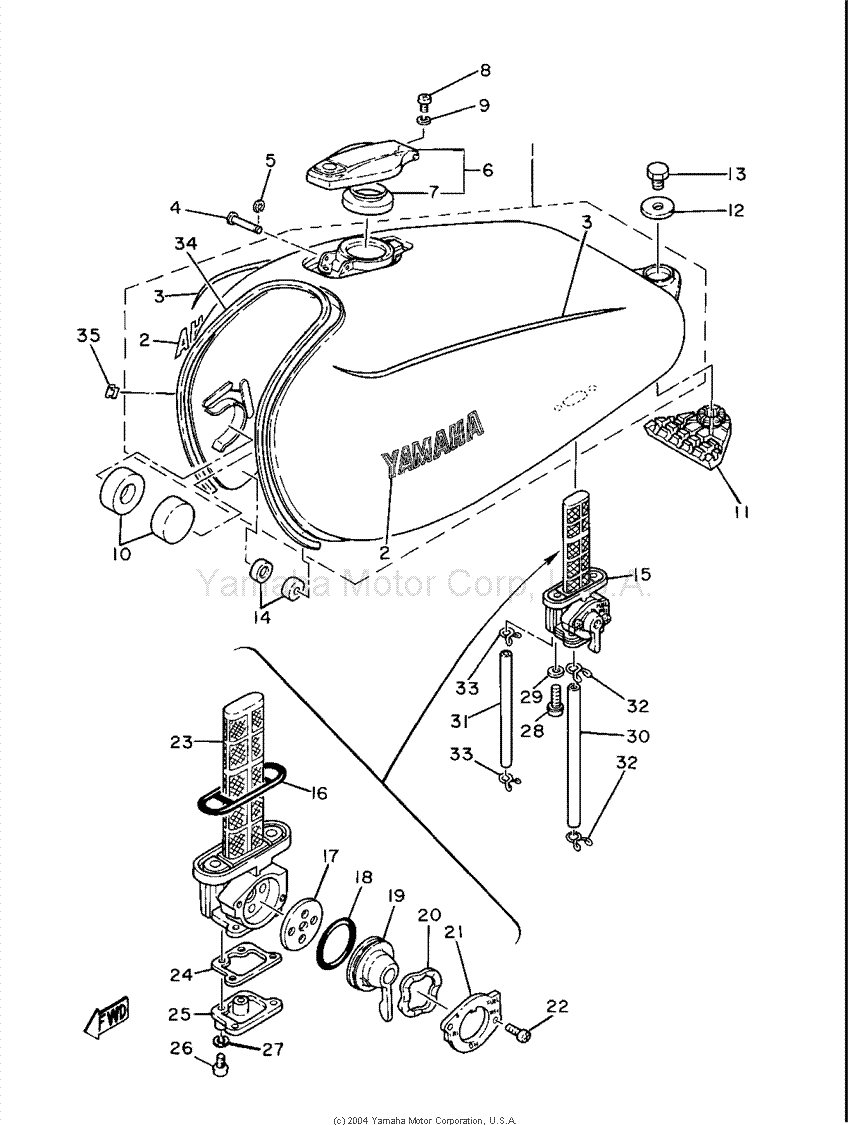

Fueltank
| Item | Part # | Description | Notes | Req |
|---|---|---|---|---|
| 1 | 2J2-24110-01-W5 | FUEL TANK COMP | STAR SILVER | 1 |
| 2 | 2F3-24161-20-00 | EMBLEM 1 | 2 | |
| 3 | 4R8-24240-00-00 | GRAPHIC SET | 1 | |
| 4 | 90249-03123-00 | PIN | 1 | |
| 5 | 93430-02001-00 | CIRCLIP | 1 | |
| 6 | 4R0-24602-00-00 | CAP ASS'Y | 1 | |
| 7 | 2M0-24641-00-00 | GASKET, CAP 1 | 1 | |
| 8 | 98501-05010-00 | SCREW, PAN HEAD (98503-05008) | 1 | |
| 9 | 92903-05100-00 | WASHER, SPRING (92901-05100) | 1 | |
| 10 | 2J2-24181-00-00 | DAMPER, LOCATING 1 | 2 | |
| 11 | 1J7-24182-01-00 | DAMPER, LOCATING 2 | 1 | |
| 12 | 90209-08098-00 | WASHER | 1 | |
| 13 | 97301-08012-00 | BOLT | 1 | |
| 14 | 2J2-24183-01-00 | DAMPER, LOCATING 3 | 2 | |
| 15 | 2J2-24500-00-00 | FUEL COCK ASS'Y 1 | 1 | |
| 16 | 1J7-24512-00-00 | O-RING | 1 | |
| 17 | 1J7-24523-00-00 | VALVE | 1 | |
| 18 | 1J7-24534-00-00 | SEAL, COCK | 1 | |
| 19 | 1J7-24524-00-00 | LEVER, COCK | 1 | |
| 20 | 1J7-24518-00-00 | WASHER, WAVE | 1 | |
| 21 | 1J7-24525-00-00 | PLATE, LEVER FITTING | 1 | |
| 22 | 98501-03010-00 | SCREW, PAN HEAD | 2 | |
| 23 | 1J7-24514-02-00 | NET, FILTER 1 | 1 | |
| 24 | 1J7-24522-00-00 | GASKET | 1 | |
| 25 | 1L9-24521-00-00 | COVER, FUEL COCK DRAIN | 1 | |
| 26 | 98501-04012-00 | SCREW, PAN HEAD | 4 | |
| 27 | 92901-04100-00 | WASHER, SPRING | 4 | |
| 28 | 90149-06008-00 | SCREW | 2 | |
| 29 | 90202-06010-00 | WASHER, PLATE | 2 | |
| 30 | 90445-10137-00 | HOSE | 1 | |
| 31 | 90445-09497-00 | HOSE | 1 | |
| 32 | 90467-09006-00 | CLIP | 2 | |
| 33 | 90467-08003-00 | CLIP | 2 | |
| 34 | 2J2-24189-01-00 | MOLD, FUEL TANK | 1 | |
| 35 | 90468-03063-00 | CLIP | 6 |
