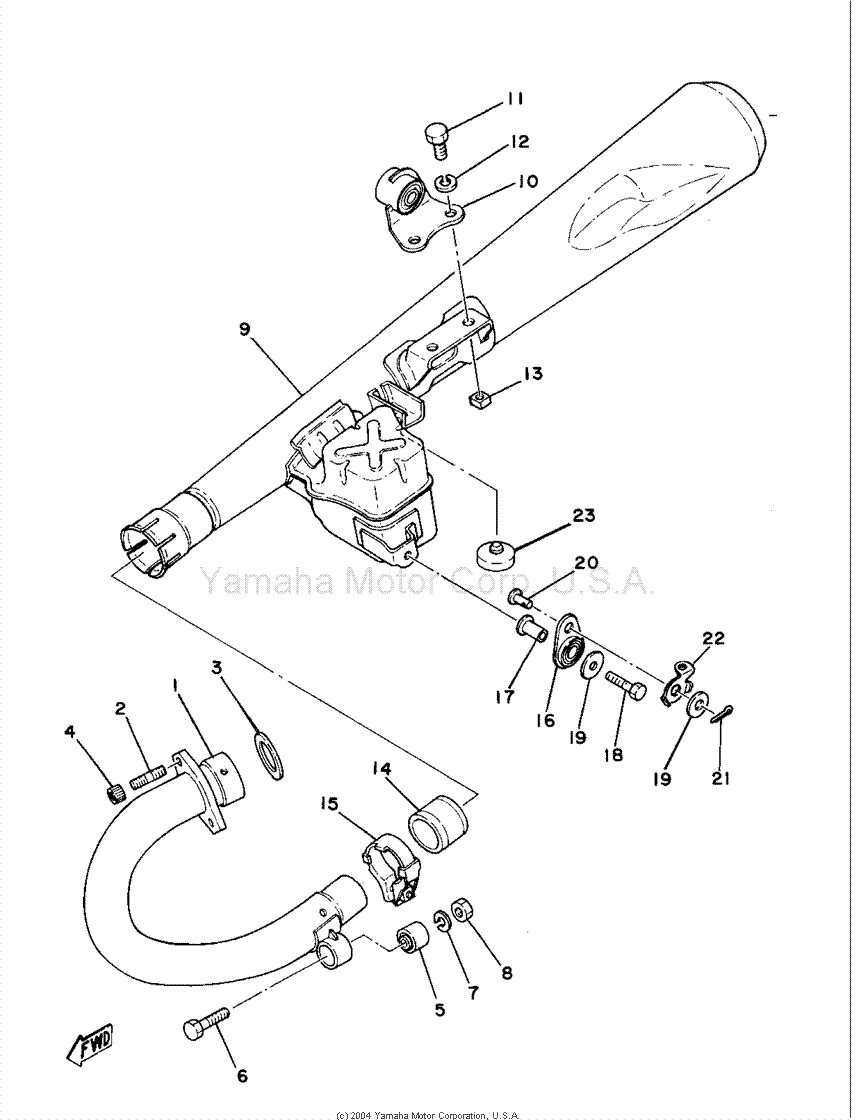

Exhaust
| Item | Part # | Description | Notes | Req |
|---|---|---|---|---|
| 1 | 2J2-14611-01-00 | PIPE, EXHAUST 1 | 1 | |
| 2 | 95621-08615-00 | BOLT, STUD | 2 | |
| 3 | 90430-38054-00 | GASKET | 1 | |
| 4 | 90179-08004-00 | NUT | (M8, SW 6, 13 Nm) | 2 |
| 5 | 2J2-14737-01-00 | DAMPER, MUFFLER | 1 | |
| 6 | 97321-08045-00 | BOLT | (M8 x 45, 18 Nm) | 1 |
| 7 | 92901-08100-00 | WASHER, SPRING | 1 | |
| 8 | 95311-08600-00 | NUT | (M8, 18 Nm) | 1 |
| 9 | 3H1-14703-01-00 | MUFFLER COMP. 1 | 1 | |
| 10 | 2J2-14771-01-00 | STAY, MUFFLER 1 | 1 | |
| 11 | 97321-10020-00 | BOLT | (M10 x 20) | 2 |
| 12 | 92906-10100-00 | WASHER, SPRING | 2 | |
| 13 | 95701-10100-00 | NUT, FLANGE | 2 | |
| 14 | 2J2-14714-00-00 | GASKET, MUFFLER | 1 | |
| 15 | 2J2-14788-00-00 | BAND, SILENCER | 1 | |
| 16 | 2J2-14791-00-00 | STAY, MUFFLER | 1 | |
| 17 | 90387-08664-00 | COLLAR | 1 | |
| 18 | 97321-08035-00 | BOLT | (M8 x 35, SW 12) | 1 |
| 19 | 90201-08649-00 | WASHER, PLATE | 2 | |
| 20 | 91701-08018-00 | PIN, CLEVIS | 1 | |
| 21 | 91401-25015-00 | PIN, COTTER | 1 | |
| 22 | 90465-08134-00 | CLAMP | 1 | |
| 23 | 1A0-27114-00-00 | STOPPER, MAIN STAND | 1 |
