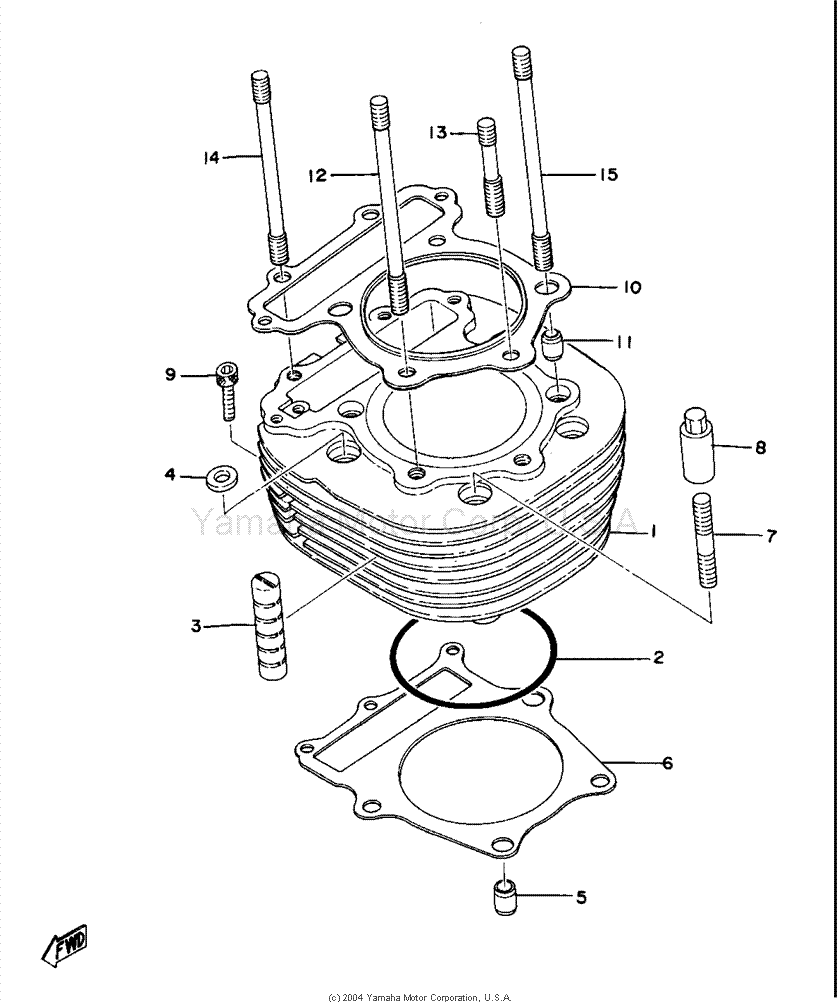

Cylinder
| Item | Part # | Description | Notes | Req |
|---|---|---|---|---|
| 1 | 2J4-11310-00-00 | CYLINDER | 1 | |
| 2 | 93210-92295-00 | O-RING | 1 | |
| 3 | 583-11127-00-00 | ABSORBER | 2 | |
| 4 | 90201-10590-00 | WASHER, PLATE | 4 | |
| 5 | 91830-24016-00 | PIN, DOWEL | 2 | |
| 6 | 583-11351-00-00 | GASKET, CYLINDER | 1 | |
| 7 | 90116-10087-00 | BOLT, STUD | 4 | |
| 8 | 90179-10201-00 | NUT | (SW 12, 38 Nm) | 4 |
| 9 | 91316-06030-00 | BOLT | (M6 x 30, SW 5, 10 Nm) | 3 |
| 10 | 2J2-11181-00-00 | GASKET, CYLINDER HEAD | 1 | |
| 11 | 91830-24016-00 | PIN, DOWEL | 2 | |
| 12 | 90116-10222-00 | BOLT, STUD | (M10, 20 Nm) | 2 |
| 13 | 90116-10223-00 | BOLT, STUD | (M10, 20 Nm) | 1 |
| 14 | 90116-08190-00 | BOLT, STUD | (M8, 13 Nm) | 2 |
| 15 | 90116-10225-00 | BOLT, STUD | (M10, 20 Nm) | 2 |
