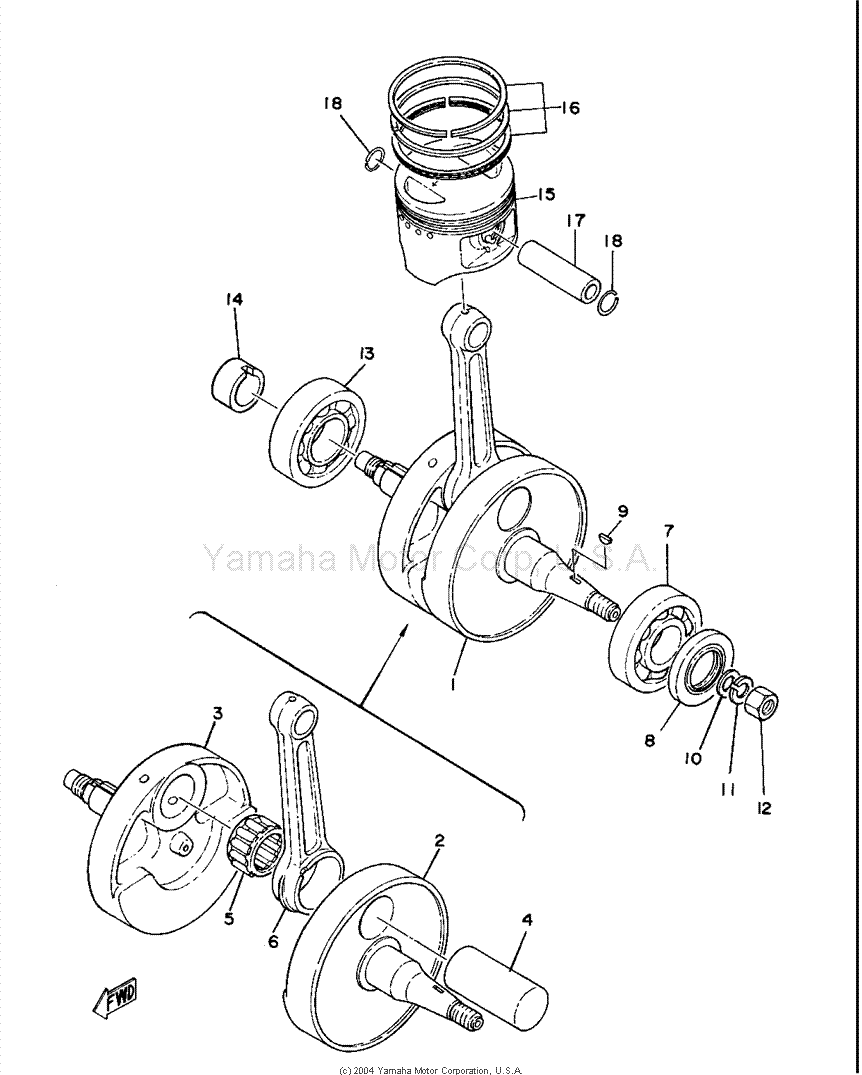

| Item |
Part # |
Description |
Notes |
Req |
| 1 |
583-11400-00-00 |
CRANKSHAFT ASS'Y |
|
1 |
| 2 |
583-11412-00-00 |
CRANK 1 |
|
1 |
| 3 |
583-11422-00-00 |
CRANK 2 |
|
1 |
| 4 |
583-11681-00-00 |
PIN, CRANK 1 |
|
1 |
| 5 |
93310-635A5-00 |
BEARING, CYLINDRICAL |
|
1 |
| 6 |
583-11651-00-00 |
ROD, CONNECTING |
|
1 |
| 7 |
93306-30616-00 |
BEARING (B6306) |
|
1 |
| 8 |
93102-30145-00 |
OIL SEAL |
|
1 |
| 9 |
90280-05013-00 |
KEY, WOODRUFF |
|
1 |
| 10 |
90201-12593-00 |
WASHER, PLATE |
|
1 |
| 11 |
92901-12100-00 |
WASHER, SPRING |
|
1 |
| 12 |
90170-12067-00 |
NUT |
(M12 x 1,25, SW 19, 80 Nm) |
1 |
| 13 |
93306-30702-00 |
BEARING (B6307) |
|
1 |
| 14 |
90387-20644-00 |
COLLAR |
|
1 |
| 15 |
2J2-11631-00-96 |
PISTON (STD) |
|
1 |
| 16 |
583-11610-01-00 |
PISTON RING SET (STD) |
|
1 |
| 17 |
2J2-11633-01-00 |
PIN, PISTON |
|
1 |
| 18 |
93450-22027-00 |
CIRCLIP |
|
2 |
| 15 |
2J2-11635-00-00 |
PISTON (1 ST O/S 0.25MM) |
ALTERNATE PARTS |
1 |
| 15 |
2J2-11636-00-00 |
PISTON (2ND O/S 0.50MM) |
ALTERNATE PARTS |
1 |
| 15 |
2J2-11637-00-00 |
PISTON (3RD O/S 0.75MM) |
ALTERNATE PARTS |
1 |
| 15 |
2J2-11638-00-00 |
PISTON (4TH O/S 1.00MM) |
ALTERNATE PARTS |
1 |
| 16 |
583-11610-11-00 |
PISTON RING SET (1ST O/S) |
ALTERNATE PARTS |
1 |
| 16 |
583-11610-21-00 |
PISTON RING SET (2ND O/S) |
ALTERNATE PARTS |
1 |
| 16 |
583-11610-31-00 |
PISTON RING SET (3RD O/S) |
ALTERNATE PARTS |
1 |
| 16 |
583-11610-41-00 |
PISTON RING SET (4TH O/S) |
ALTERNATE PARTS |
1 |
