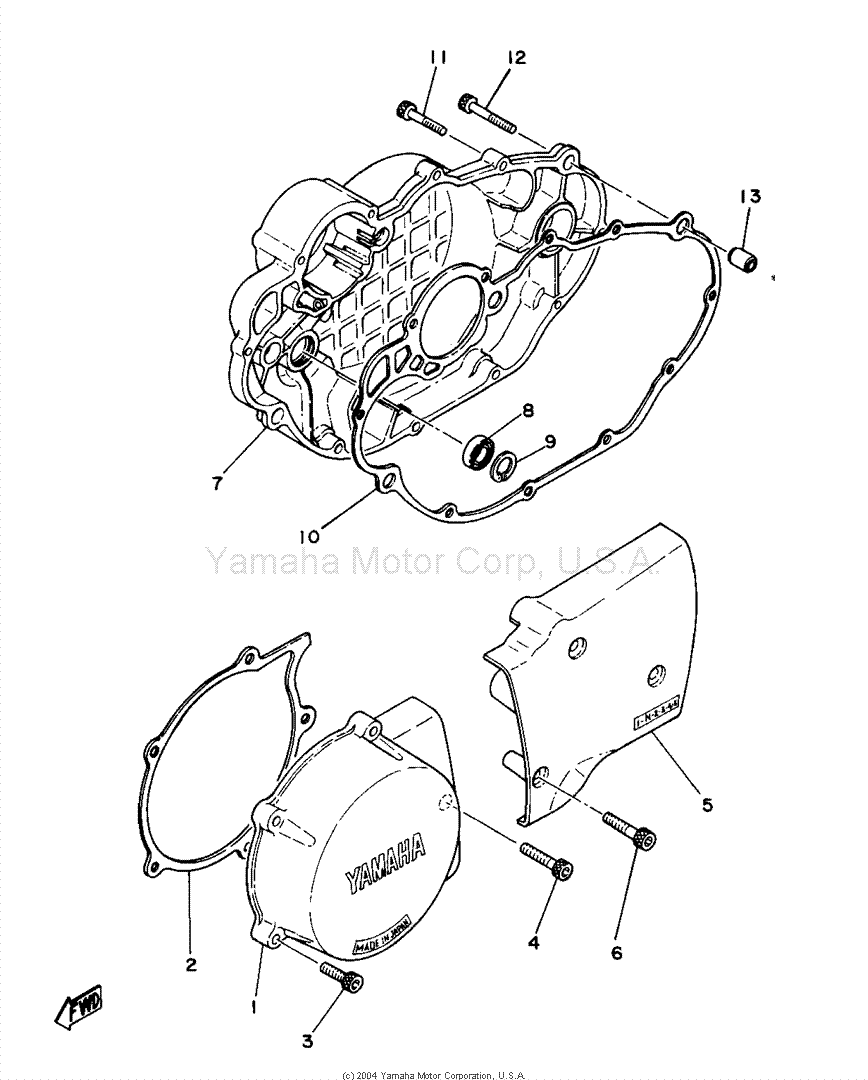

Crankcase Cover
| Item | Part # | Description | Notes | Req |
|---|---|---|---|---|
| 1 | 2J2-15411-00-00 | COVER, CRANKCASE 1 | 1 | |
| 2 | 583-15451-00-00 | GASKET, CRANKCASE COVER | 1 | |
| 3 | 91311-06025-00 | BOLT | (M6 x 25, SW 5, 10 Nm) | 4 |
| 4 | 91311-06035-00 | BOLT | (M6 x 35, SW 5, 10 Nm) | 1 |
| 5 | 2J2-15421-00-00 | COVER, CRANKCASE 2 | 1 | |
| 6 | 91311-06035-00 | BOLT | (M6 x 35, SW 5, 10 Nm) | 3 |
| 7 | 2J2-W1542-00-00 | COVER, CRANKCASE 3 (2J2-15431-01-00) | 1 | |
| 8 | 93101-14089-00 | OIL SEAL | 1 | |
| 9 | 93420-25002-00 | CIRCLIP | 1 | |
| 10 | 583-15462-00-00 | GASKET, CRANKCASE COVER 3 | 1 | |
| 11 | 91311-06030-00 | BOLT | (M6 x 30, SW 5, 10 Nm) | 8 |
| 12 | 91311-06040-00 | BOLT | (M6 x 40, SW 5, 10 Nm) | 2 |
| 13 | 91830-22016-00 | PIN, DOWEL | 2 |
