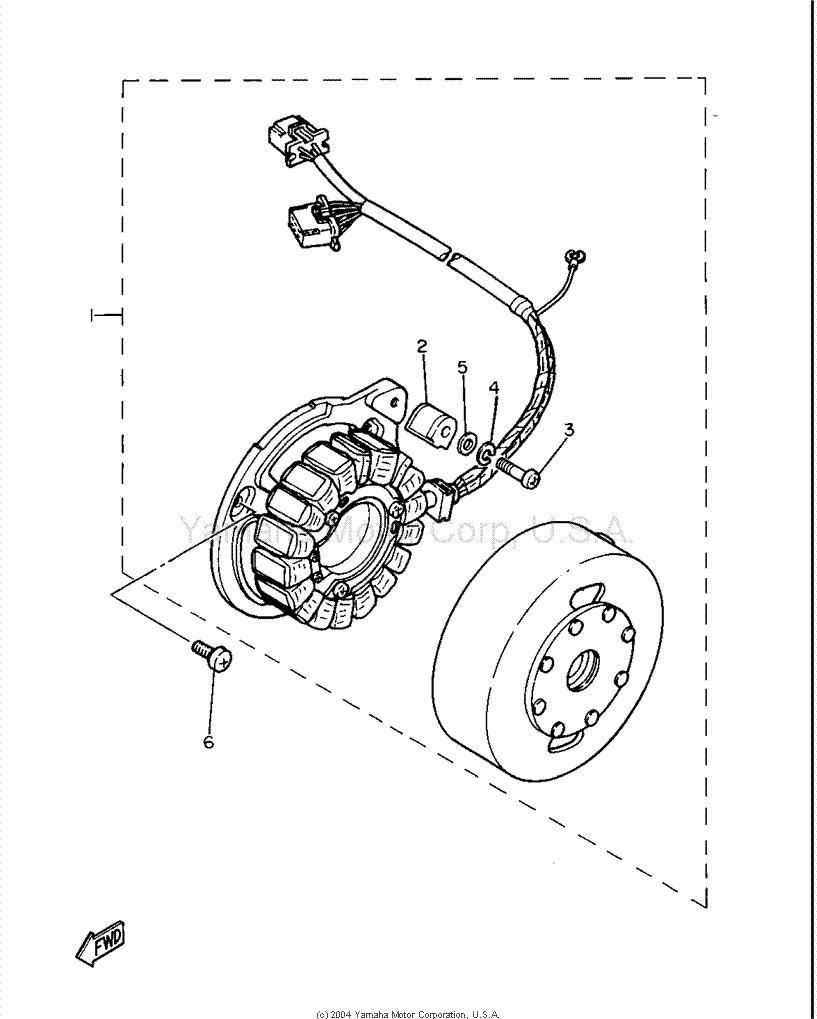

A.C. Magneto
| Item | Part # | Description | Notes | Req |
|---|---|---|---|---|
| 1 | 4R8-81400-50-00 | AC MAGNET GENERATOR ASS'Y | 1 | |
| 2 | 2J2-81416-50-00 | COIL, PULSER | 1 | |
| 3 | 97802-05035-00 | SCREW, PAN HEAD | (M5 x 35, PH2, 9 Nm ???) | 1 |
| 4 | 92903-05100-00 | WASHER, SPRING(92902-05100) | 1 | |
| 5 | 92901-05600-00 | WASHER, PLATE | 1 | |
| 6 | 92503-06015-00 | SCREW, PAN HEAD (92502-06016) | (M6 x 16, PH 2, 9 Nm) | 3 |
